Component Location

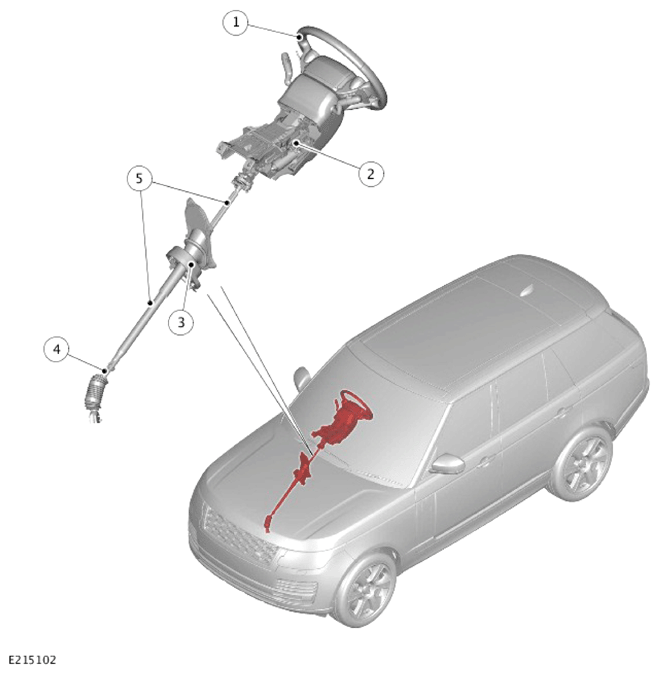

Component Location
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Item
Description
1
Steering wheel
2
Steering column
3
Steering bulkhead seal
4
Steering column lower shaft
5
Steering column upper shaft
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
