Replacing The Batteries

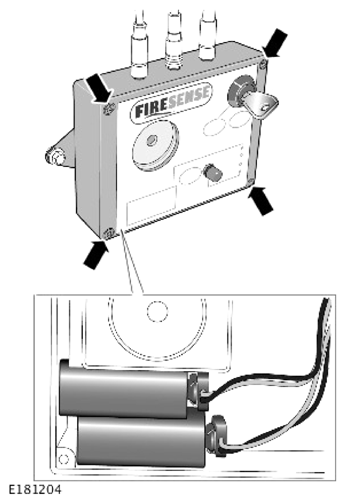

Fire suppression control panel batteries

G14125346Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the four fixings with a cross head screwdriver.

Remove and replace the batteries.

Use new, high quality Alkaline PP3 batteries.
