Fire Suppression Nozzles

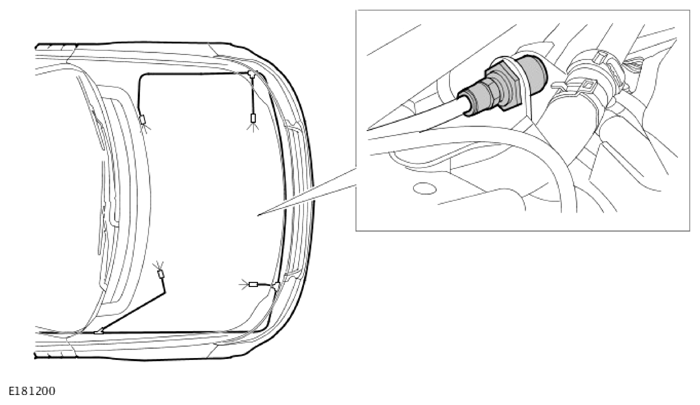

G14125342Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Four fire suppression nozzles are strategically positioned to deliver the gas from the fire suppressant tank into the engine compartment.

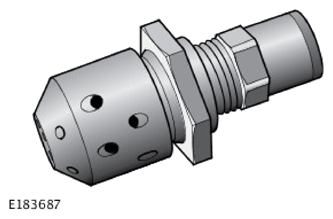

Fire suppression nozzle

G14125343Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
