Interactive Control Display Module

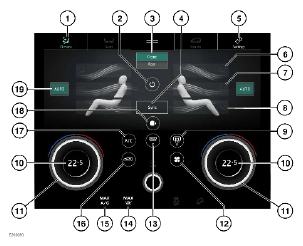

| ITEM | DESCRIPTION |
|---|---|
| 1 | Climate icon |
| 2 | Climate control on/off |
| 3 | Front climate control |
| 4 | Sync |
| 5 | Settings |
| 6 | Windshield and front side window vents |
| 7 | Face vents |
| 8 | Footwell vents |
| 9 | Heated rear window |
| 10 | Cabin temperature control or front seat temperature control - Press to change |
| 11 | Selector |
| 12 | Blower speed |
| 13 | Heated windshield |
| 14 | Maximum windshield defrost |
| 15 | Maximum Air Conditioning (A/C) |
| 16 | Recirculate |
| 17 | A/C |
| 18 | Air ionization |
| 19 | Automatic |
The Interactive Control Display Module (ICDM) controls the climate control through Climate screen. Touch the Climate at the top of the ICDM to see the Climate screen.
The Climate screen and ICDM has icons and rotary switches to control the climate in the vehicle. The ICDM communicates with the HVAC Control Module via the High Speed (HS) Controller Area Network (CAN) comfort systems bus.
The Climate screen in the ICDM enables the control of these:
- Outside air or recirculation
- Air flow rate
- Air Conditioning (A/C)
- Zone temperatures
- Heated windshield (if equipped)
- Heated rear screen
- Maximum A/C
- Maximum defrost.
The AUTO function is set in the Settings - Climate options.
The Sync function synchronizes the front and rear passenger climate settings to the driver's settings.
Rear Climate Control

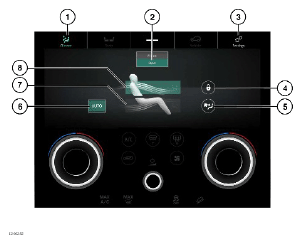

| ITEM | DESCRIPTION |
|---|---|
| 1 | Climate control icon |
| 2 | Rear climate |
| 3 | Settings |
| 4 | Automatic |
| 5 | Auxiliary blower |
| 6 | Footwell vents - Rear |
| 7 | Lock Rear Integrated Control Panel (RICP) |
| 8 | Air ionization |
| 9 | Face vents - Rear |
The rear climate control can be controlled from the Interactive Control Display Module (ICDM) or the Rear Integrated Control Panel (RICP).
