Interactive Control Display Module And Interactive Display Module 'A'

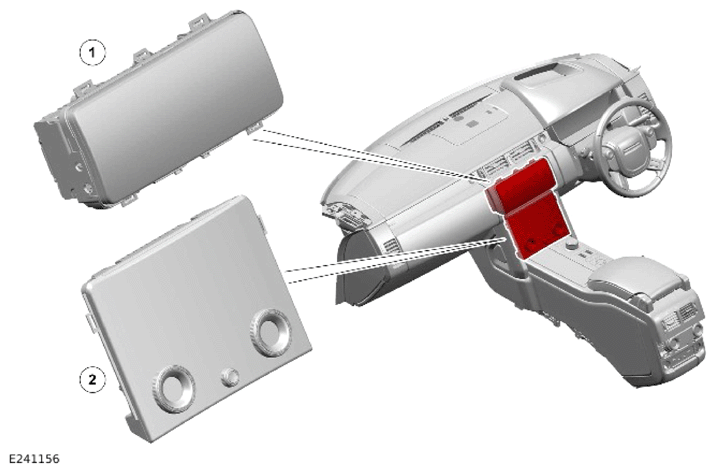

NOTE: Right Hand Drive (RHD) vehicle is shown. Left Hand Drive (LHD) vehicle is similar.
G14160930Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Interactive Display Module 'A' (IDMA)
2 Interactive Control Display Module (ICDM)

The Interactive Display Module 'A' (IDMA) displays images from the Rear View Camera (RVC) for the Reverse Traffic Detection (RTD).
