System Continuity Test
NOTE:
Make sure that the key switch on the control box is in the OFF/CHECK position, before starting the test.

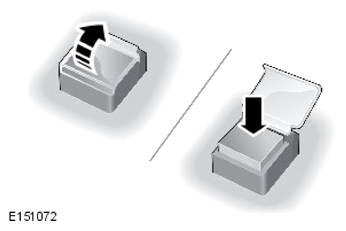

Fire suppression switch
Press the 'GREEN' fire suppression switch, mounted in the floor console.
Red light - when the 'GREEN' fire suppression switch is pressed, the sounder will emit a pulsing tone.
The red light indicates good electrical continuity.
NOTE:
- If the fire system has detonated, the batteries must be replaced.
- The batteries must be replaced at least every 12 months.
This concludes the check procedure. Turn the key to the 'System Armed' position and remove the key.
