Component Location

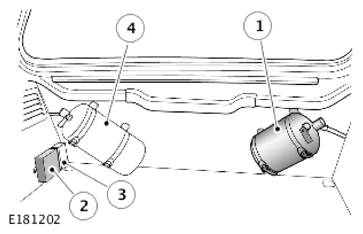

Tank and Control Module
NOTE:
The location of the fire suppressant tanks may change from the left side of the vehicle to the right side of the vehicle. The red tank is always connected to the underfloor fire suppressant system and the green tank is always connected to the engine compartment fire suppressant system.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fire suppressant tank |
| 2 | Fire suppression control module, panel and battery |
| 3 | Fire suppression control module, panel and battery - Refer to: UNDERFLOOR FIRE SUPPRESSION SYSTEM |
| 4 | Fire suppressant tank - Refer to: UNDERFLOOR FIRE SUPPRESSION SYSTEM |

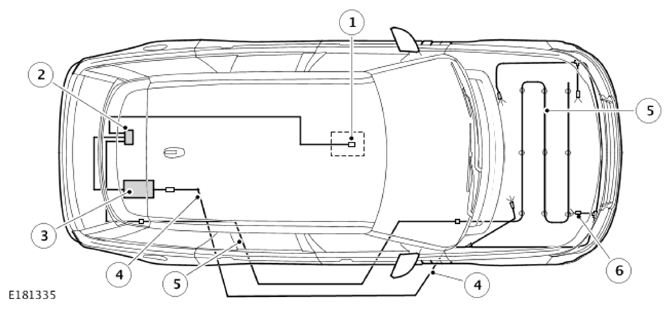

Fire suppression system - schematic
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fire suppression switch (GREEN switch) |
| 2 | Fire suppression control module, panel and battery |
| 3 | Fire suppressant tank |
| 4 | Gas carrying tube |
| 5 | Fire detection sensor cable |
| 6 | Fire suppressant nozzle (4 off) |
