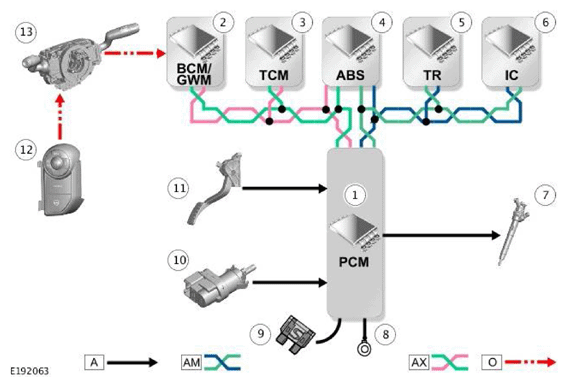

Control Diagram - Standard Speed Control
A = HARDWIRED: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AX = FLEXRAY SYSTEMS BUS: O = LOCAL INTERCONNECT NETWORK (LIN) BUS.
| Item | Description |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 3 | Transmission Control Module (TCM) |
| 4 | Anti-lock Brake System (ABS) control module |
| 5 | Terrain Response (TR) switchpack |
| 6 | Instrument Cluster (IC) |
| 7 | Fuel injector |
| 8 | Ground |
| 9 | Power supply |
| 10 | Brake pedal switch |
| 11 | Accelerator Pedal Position (APP) sensor |
| 12 | Steering wheel switchpack - right |
| 13 | Clockspring (CLKSPG) |
