Torque Specifications - Ingenium I4 2.0L Diesel

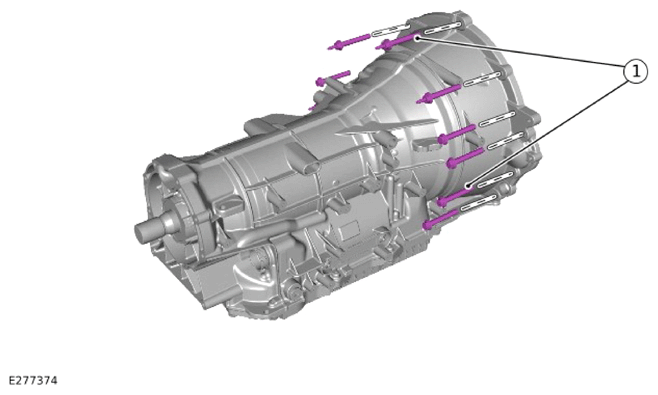

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| ITEM |
DESCRIPTION |
NM |
LB-FT |
| 1 |
Transmission bolts |
48 |
35.4 |
NOTE:
Numbers with a green background are a single use component.

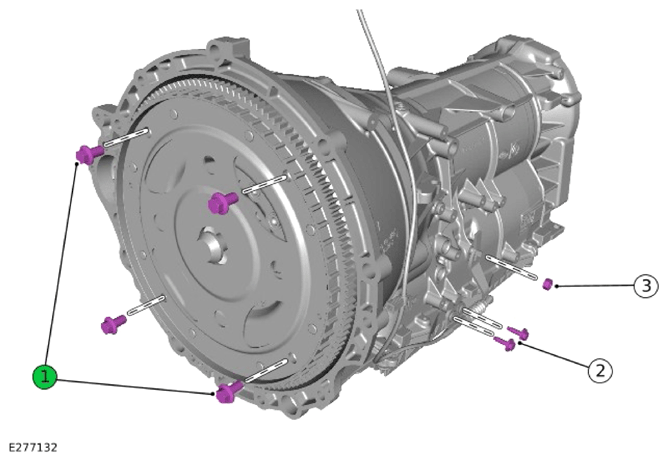

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| ITEM |
DESCRIPTION |
NM |
LB-FT |
| 1 |
Torque converter bolts |
65 |
47.9 |
| 2 |
Transmission EPR
cable bolts |
10 |
7.4 |
| 3 |
Transmission EPR
lever nut |
12 |
8.9 |
