Message Center (G2417300): Specifications

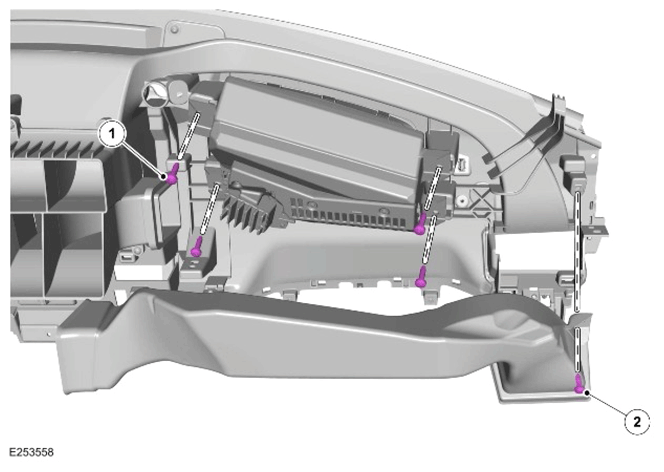

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	Nm	LB-FT	LB-IN
1	Head Up Display (HUD) bolt	5	-	44
2	Driver side face vent screw	2.2	-	19
