Automatic Transmission External Controls (G2423681)
>>
Specifications
Automatic Transmission External Controls (G2423681): Specifications

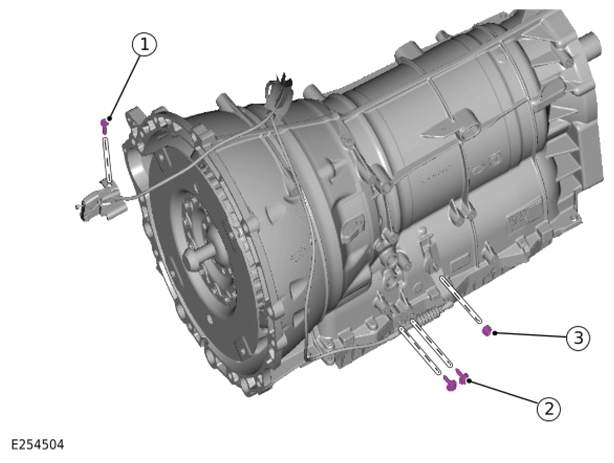

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATIONS
ITEM
DESCRIPTION
NM
LB-FT
1
Emergency Park Release (EPR) cable to engine mounting bolt
10
7.4
2
Emergency Park Release (EPR) cable to transmission bolts
10
7.4
3
Emergency Park Release (EPR) lever nut
11
8.1
