Gear Shift Module Repair (G2735456): Removal

CAUTION: The electro-static discharge gloves supplied in the parts kit must be worn during this repair.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
Gear Shift Module (GSM) shown removed to provide extra clarity.

Make sure the ignition is switched off.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

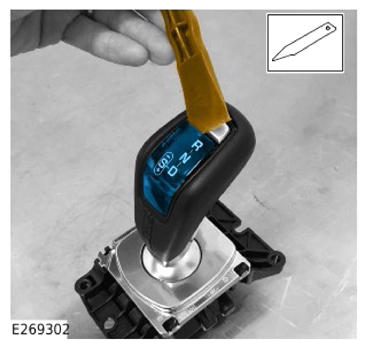

Use a suitable tool to release the adhesive and remove the decal.

General Equipment: Interior trim remover
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

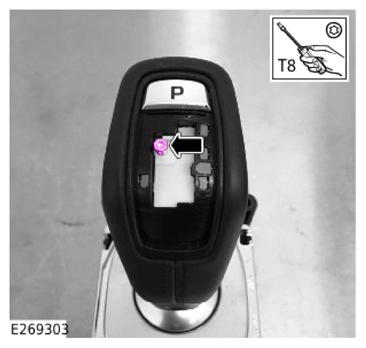

Remove the screw.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

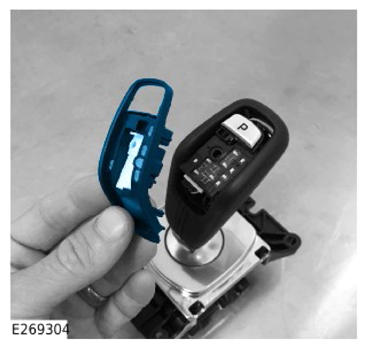

Remove the outer bezel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

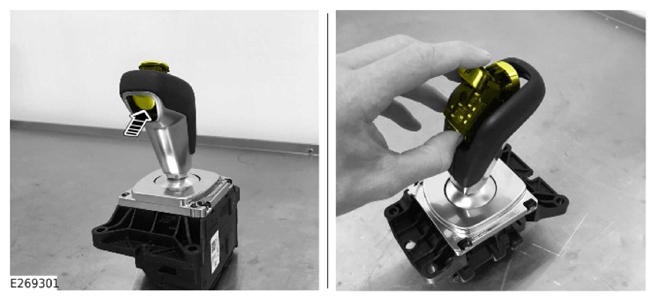

Release the trigger assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

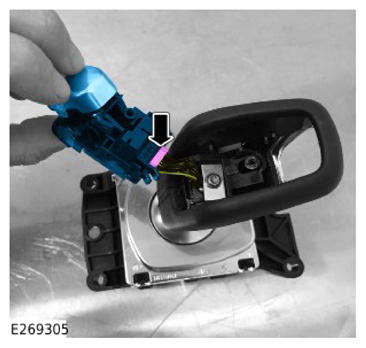

- Disconnect the electrical connector from the trigger assembly.
- Remove the trigger assembly.
