HVAC Control Module
NOTE:

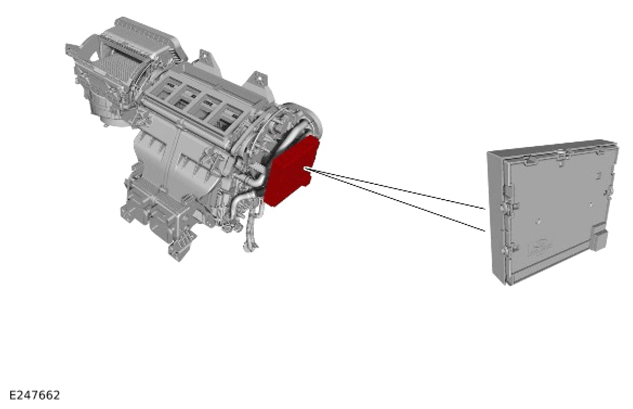

RHD vehicle is shown, LHD vehicle is similar.
The HVAC control module is located behind the driver side of the instrument panel. The HVAC control module controls the air distribution and temperature.
The HVAC control module processes inputs from the following:
- The climate control system sensors.
- The FCDIM .
- The FCIM .
- The FCIMB and other systems.
The HVAC control module then outputs the appropriate control signals to the A/C system and the heating and ventilation system.
The HVAC control module also controls the following:
- The temperature control for the front seats and rear seats (if equipped).
- For additional information, Refer to: SEATS - [+] 5 SEAT CONFIGURATION
- For additional information, Refer to: SEATS - [+] 6 SEAT CONFIGURATION
- For additional information, Refer to: SEATS - [+] 7 SEAT CONFIGURATION
- Fuel Fired Booster Heater (FFBH) (if equipped).
- For additional information, Refer to: FUEL FIRED BOOSTER HEATER
- Electric booster heater (if equipped).
- For additional information, Refer to: ELECTRIC BOOSTER HEATER
