Image Processing Module 'A'

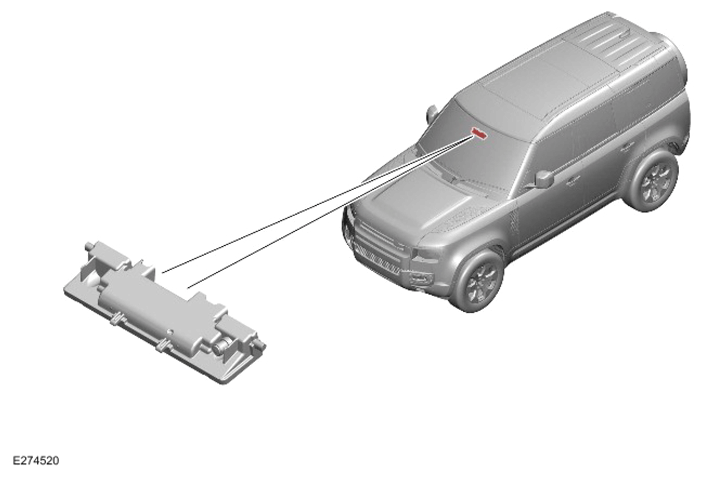

The IPMA is located centrally at the top of the windshield, behind the rear view mirror cover. The IPMA is attached to a bracket, which is bonded to the windshield.
The IPMA is a module that has an integrated camera with the lens directed through the windshield. The IPMA accurately detects and classifies objects by measuring their movement when they cross the vehicle path. The IPMA is also able to detect road lane markings and traffic sign markings.
The IPMA has connections for the following:
- Power
- Ground
- BroadR-Reach®
- HS CAN underbody systems bus.
