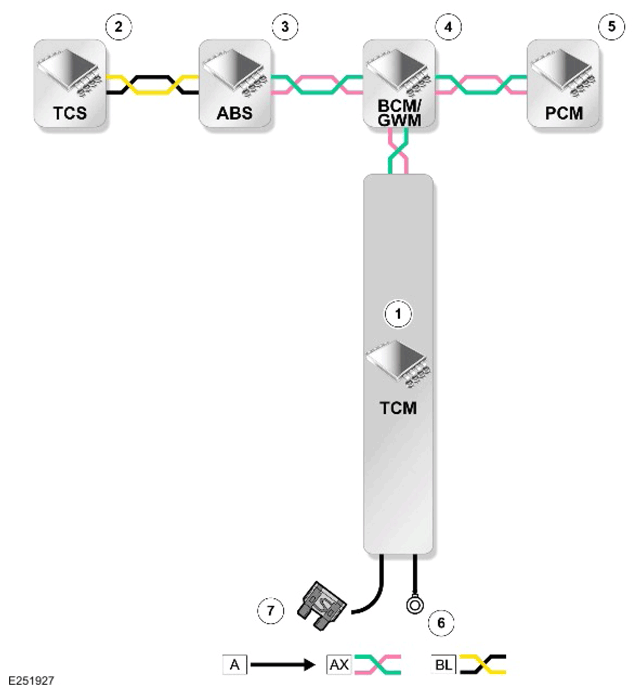

Control Diagram
AX = FLEXRAY SYSTEMS BUS: BL = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) UNDERBODY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Transmission Control Module (TCM) |
| 2 | Transmission Control Switch (TCS) |
| 3 | Anti-lock Brake System (ABS) control module |
| 4 | Body Control Module/Gateway Module (BCM/GWM) |
| 5 | Powertrain Control Module (PCM) |
| 6 | Ground |
| 7 | Power supply |
