Torque Specifications
| COMPONENT TORQUE LOCATION |
|---|
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN |
|---|---|---|---|

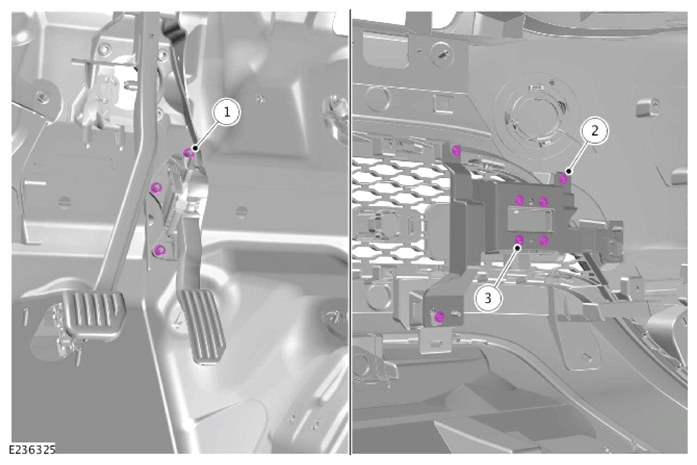

| Accelerator pedal assembly and speed control actuator retaining nuts | 10 | 7 | 88 |
| Adaptive Speed Control Module (ASCM) bracket retaining screws | 2 | - | 18 |
| ASCM retaining screws | 2 | - | 18 |

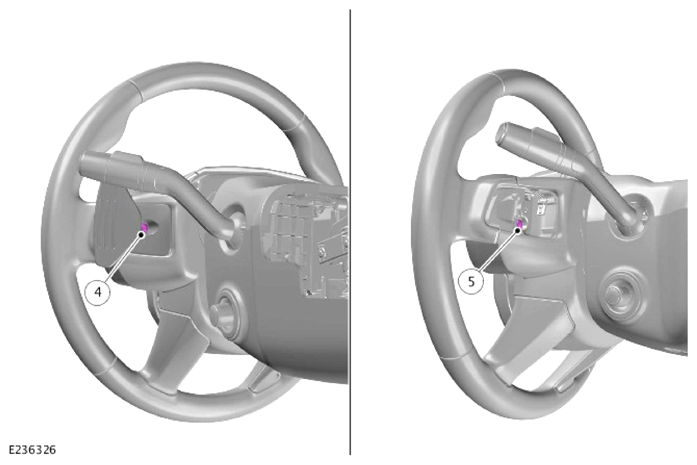

| Paddle switch retaining screw | 2 | - | 18 |
| Speed control switch retaining screw | 2.5 | - | 22 |
