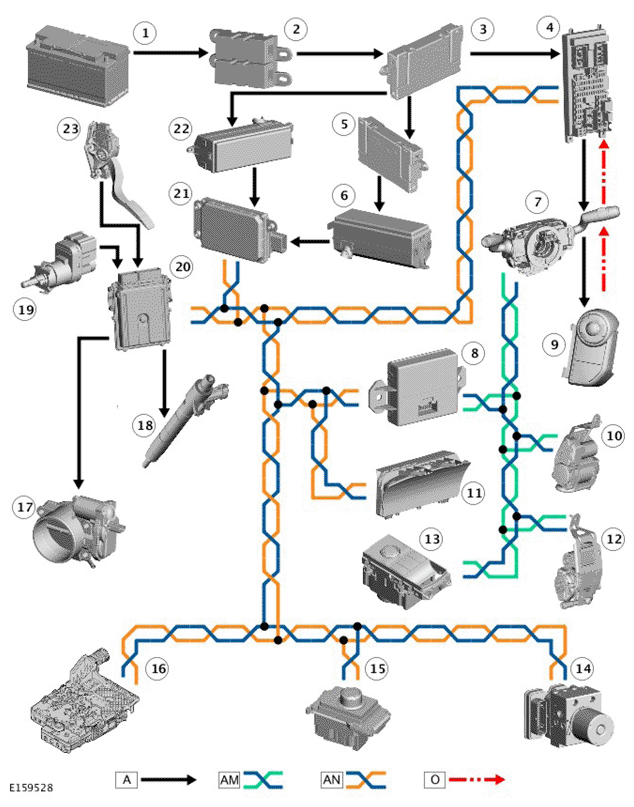

Control Diagram - Adaptive Speed Control
A = HARDWIRED; AM = HIGH SPEED CAN CHASSIS SYSTEMS; AN = HIGH SPEED CAN POWERTRAIN SYSTEMS; O = LIN BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery junction box 2 |
| 3 | Battery junction box |
| 4 | Central junction box |
| 5 | Auxiliary junction box |
| 6 | Engine junction box |
| 7 | Clockspring and steering angle sensor |
| 8 | Gateway module |
| 9 | Right steering wheel switchpack |
| 10 | Left active seatbelt retractor |
| 11 | Instrument cluster |
| 12 | Right active seatbelt retractor |
| 13 | Terrain Response® switchpack |
| 14 | Anti-lock brake system control module |
| 15 | Transmission control switch |
| 16 | Transmission control module |
| 17 | Electric throttle |
| 18 | Fuel injectors |
| 19 | Brake pedal switch |
| 20 | Engine control module |
| 21 | Adaptive speed control module |
