Transmission Control Switch: Removal

  1. Remove the floor console upper panel.

    Refer to: FLOOR CONSOLE UPPER SECTION .

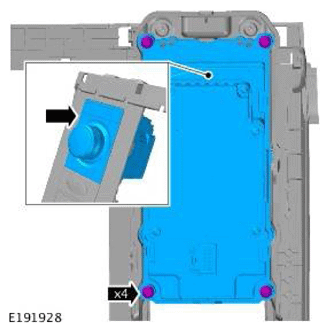

  2. G12001648

    Remove the Transmission Control Switch.
