Transmission Control Switch Knob: Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

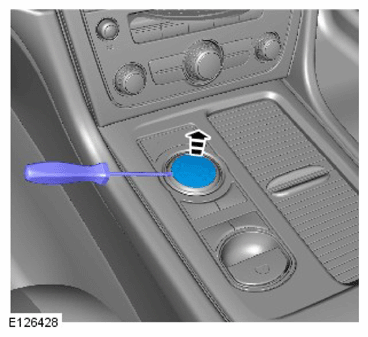

  1. CAUTION:
    • Do not start the engine.
    • Take extra care not to damage the edges of the component.
    G11768319

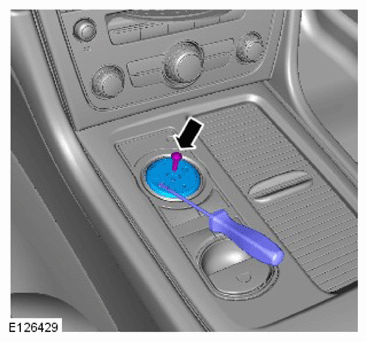

  2. CAUTION: Take extra care not to damage the edges of the component.
    G11768320

    Torque:  2 Nm
