Main Control Valve Body: Installation

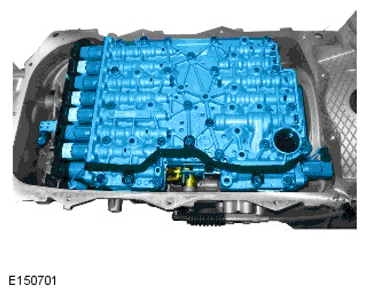

  1. G11599733
  2. NOTE: Make sure that the component is installed to the noted removal position.
    G11599732
  3. G11599735
    • Special Tool(s): JLR-308-844
  4. G11599736
  5. CAUTION: Make sure that the electrical connector is installed in the correct orientation as noted in the removal step.

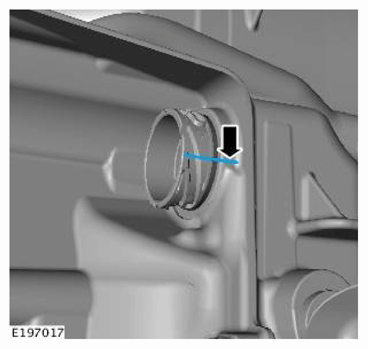

    G12001214
  6. G11599738

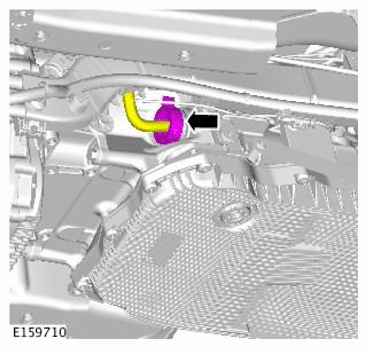

  7. G11768062
  8. CAUTION: Make sure that new bolts are installed.
    NOTE: Tighten the retaining bolts evenly and progressively.
    Fig 1: Valve Body Bolts Tightening Sequence
    G11599740Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Transmission control valve kit Quantity: 1  .

    Torque:  8 Nm

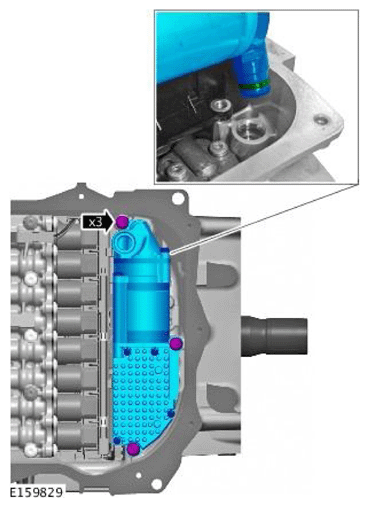

  9. CAUTION: A new O-ring seal is to be installed.
    G11768059

    Torque:  8 Nm

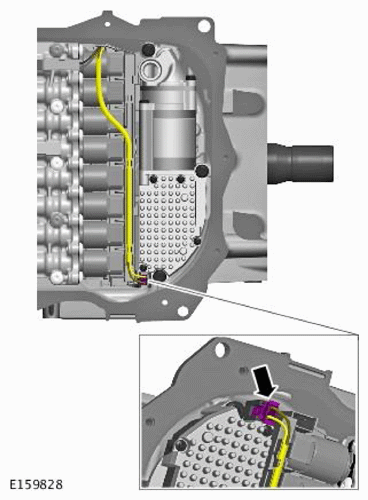

  10. NOTE: Tighten the retaining bolts evenly and progressively.
    G11768058
  11. Install the transmission fluid pan.
  12. Using the diagnostic tool, calibrate the main control valve body and the transmission control module (TCM).
