3.0L & 5.0L

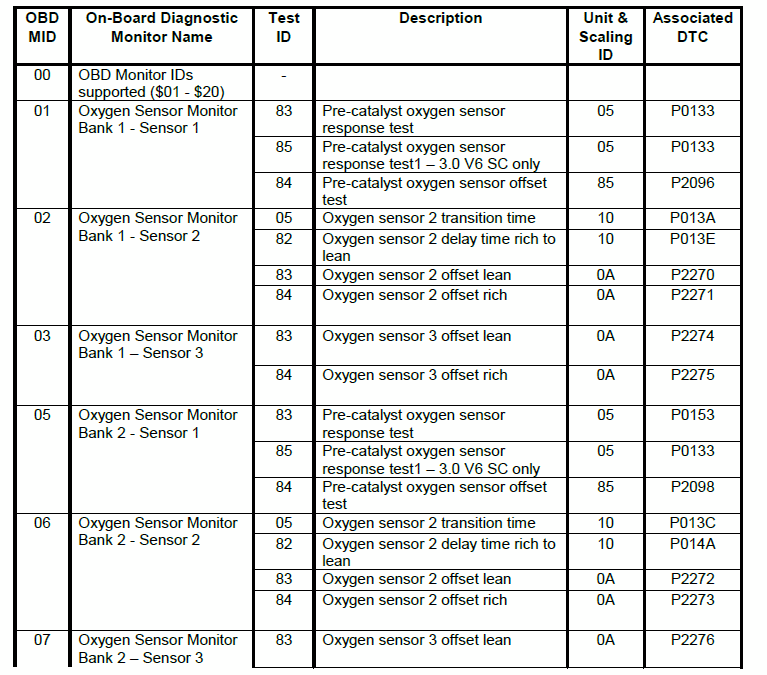

Fig 1: Mode 6 Data (1 Of 6)

G00573993

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 2: Mode 6 Data (2 Of 6)

G00573994

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

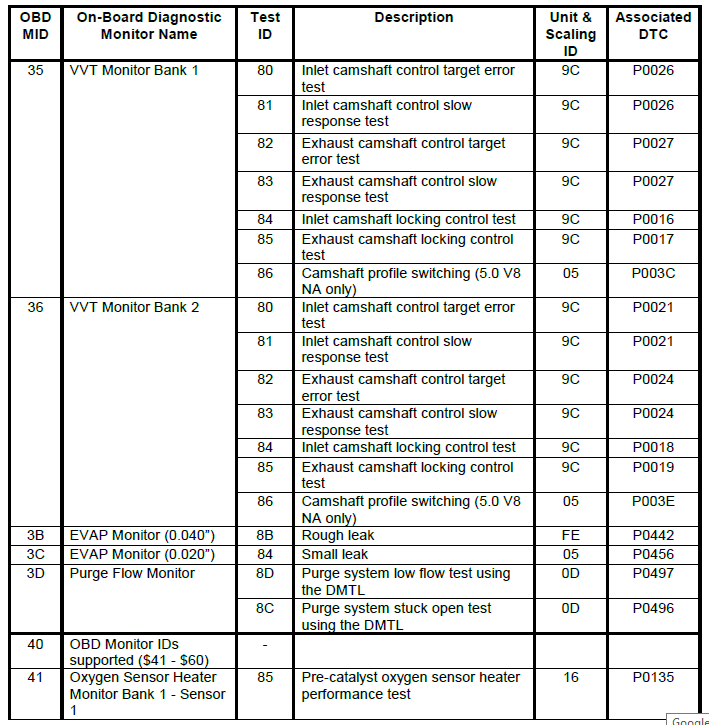

Fig 3: Mode 6 Data (3 Of 6)

G00573995

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 4: Mode 6 Data (4 Of 6)

G00573996

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

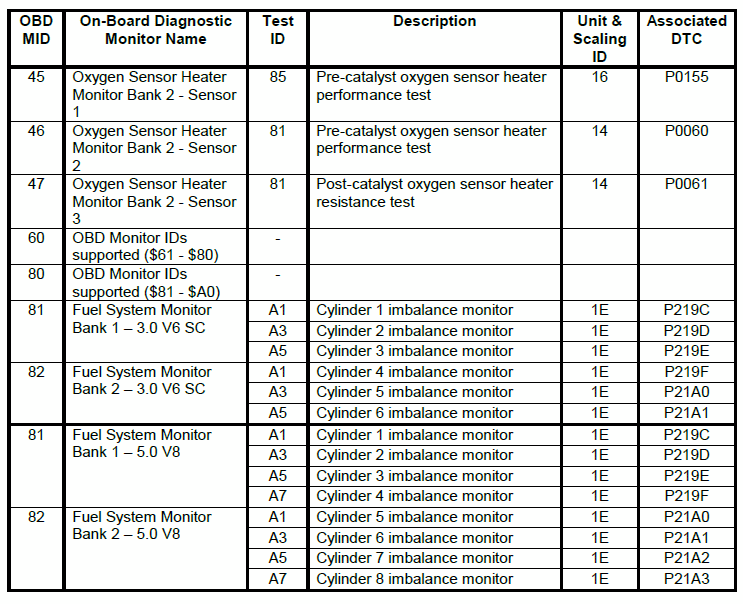

Fig 5: Mode 6 Data (5 Of 6)

G00573997

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

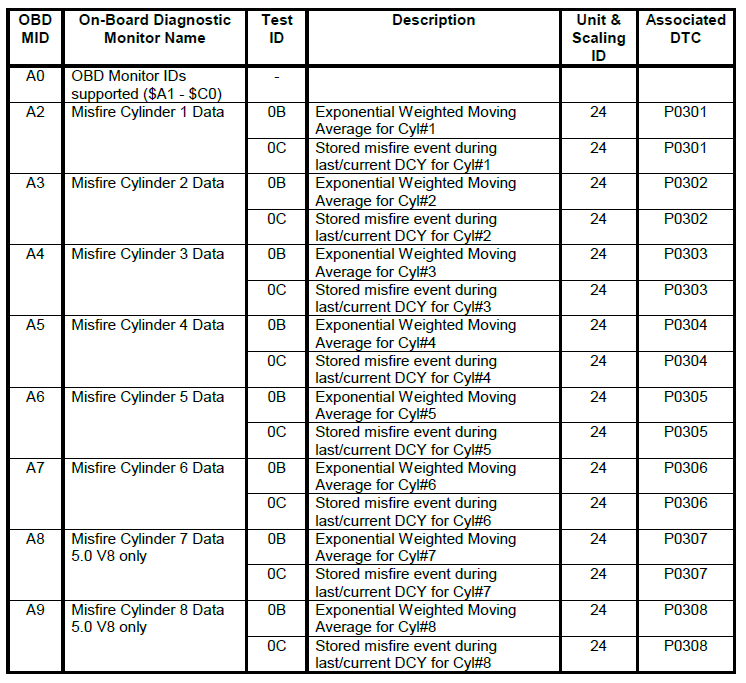

Fig 6: Mode 6 Data (6 Of 6)

G00573998

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
