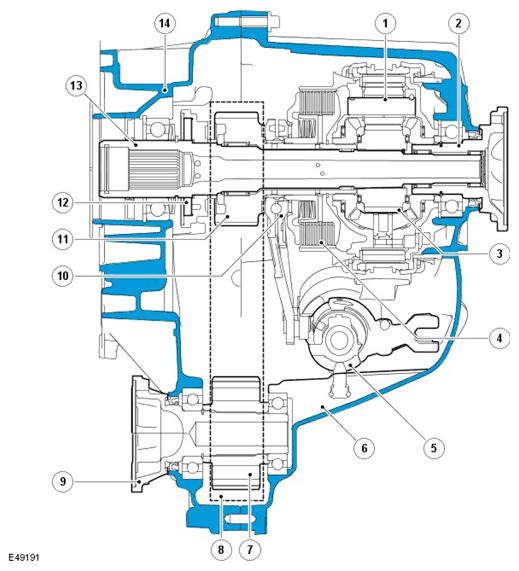

Transfer Box (Sectional View)
| ITEM | DESCRIPTION |
|---|---|
| 1 | Planetary gear set |
| 2 | Rear output flange |
| 3 | Centre differential assembly |
| 4 | Multi-plate clutch |
| 5 | Transfer box motor module |
| 6 | Rear housing assembly |
| 7 | Front output sprocket |
| 8 | Chain drive |
| 9 | Front output flange |
| 10 | Transfer box motor levers |
| 11 | Sprocket |
| 12 | Oil pump assembly |
| 13 | Input shaft |
| 14 | Front housing assembly |
