Removal And Installation: Removal
CAUTION:
Make sure the ignition switch is in position 0.

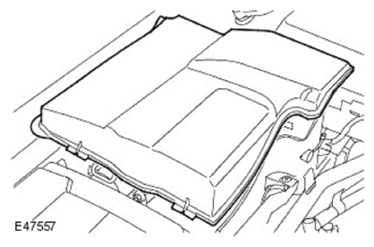

Remove the cover.

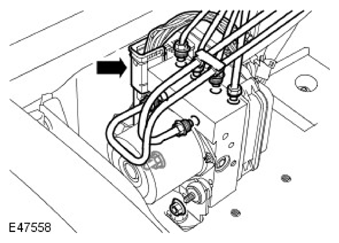

- Disconnect the electrical connector.
-
CAUTION:
- Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.
- Before the disconnection or removal of any components, ensure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.
Disconnect the 6 brake tubes.
- Position an absorbent cloth to collect fluid spillage.
Remove the ABS module from the mounting bracket.
- Loosen, but do not remove, the 2 nuts securing the ABS module to the bracket.
