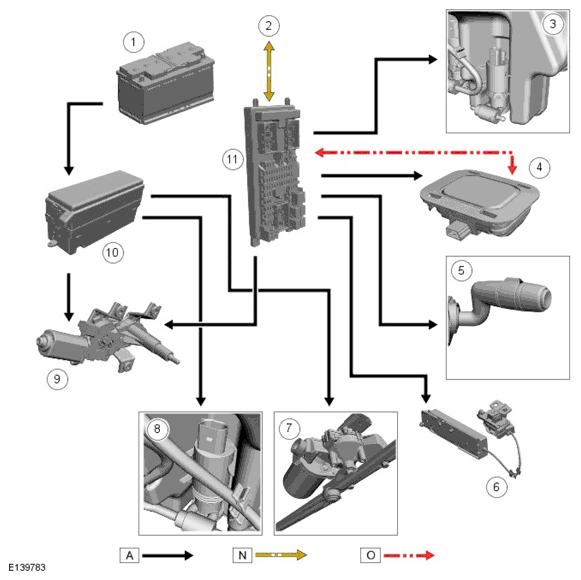

Control Diagram
NOTE:
A
= Hardwired; N
= Medium speed CAN; O
= LIN bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | CAN connection to other systems |
| 3 | Front and rear screen washer pump |
| 4 | Rain/Light sensor |
| 5 | Wiper control switch |
| 6 | Tailgate latch assembly |
| 7 | Front wiper motor assembly |
| 8 | Headlamp washer pump |
| 9 | Rear wiper motor assembly |
| 10 | BJB |
| 11 | CJB |
