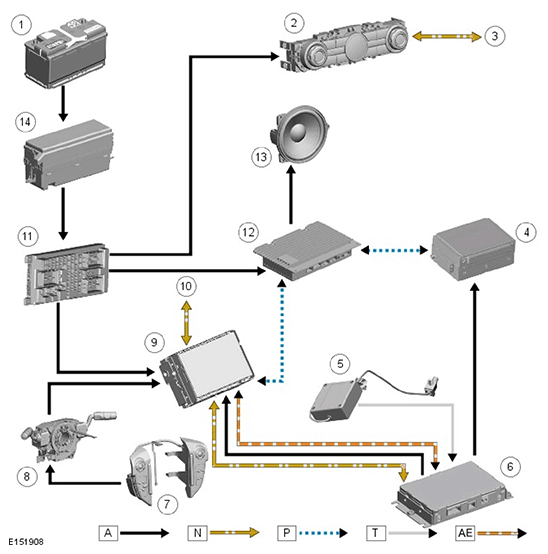

Control Diagram (ASIA)
NOTE:
A
= Hardwired; N
= Medium Speed CAN; P
= MOST; T
= CoAxial; AE
= LVDS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Integrated Control Panel (ICP), incorporating the navigation switch |
| 3 | Medium speed CAN bus connection to other vehicle systems |
| 4 | IAM (Integrated Audio Module) |
| 5 | GPS antenna |
| 6 | Navigation video interface module |
| 7 | Steering wheel switches |
| 8 | Clockspring |
| 9 | TS (Touch Screen) |
| 10 | Medium speed CAN bus connection to other vehicle systems |
| 11 | CJB (Central Junction Box) |
| 12 | Audio Amplifier Module (AAM) |
| 13 | Speakers |
| 14 | BJB (Battery Junction Box) |
