Removal And Installation: Removal

NOTE: Automatic transmission shown. Manual transmission is similar.

WARNING: The gear lever knob will be released suddenly, keep face clear during removal.

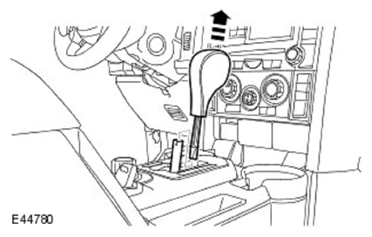

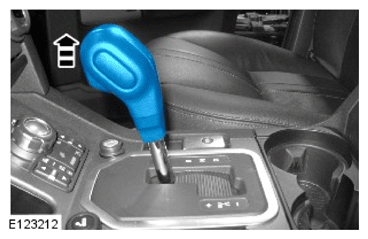

Remove the selector lever knob.
- Pull the knob upwards.

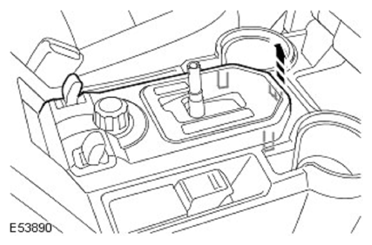

Release the ride and handling optimization switch assembly.
- Release the 4 clips.

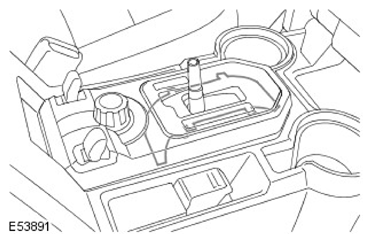

Release the selector lever panel.
- Release the 4 clips.

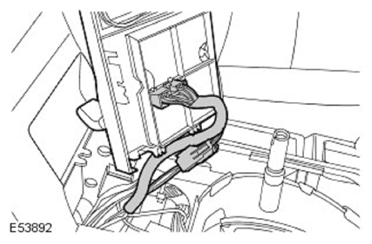

Remove the ride and handling optimization switch assembly.

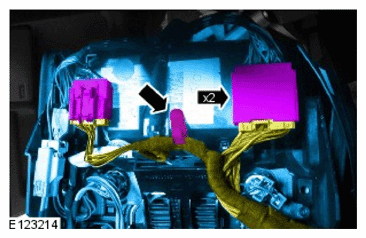

- Disconnect the 2 electrical connectors.

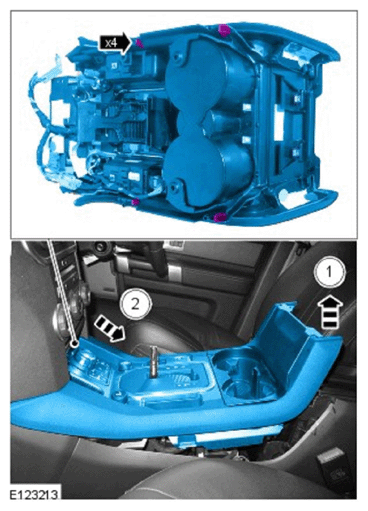

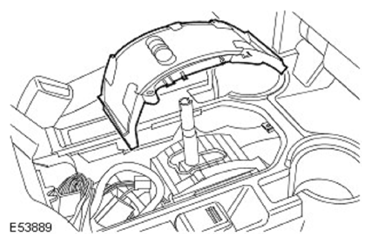

Remove the selector lever panel.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
Make sure that the gear selector lever is in position N before removing any components.
