Removal And Installation: Removal

NOTE: The navigation system traffic amplifier is located on the LH side of the liftgate. The diversity amplifier is located on the RH side of the liftgate. The procedure is similar for both components.
  1. G11599095

    Remove the liftgate upper trim panel.

    • Release the 4 clips.

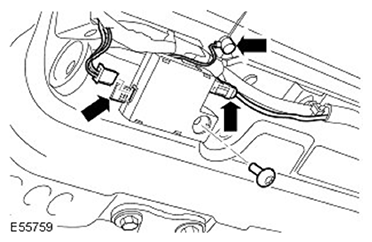

  2. G11599288

    Remove the navigation system traffic amplifier.

    • Disconnect the 2 antenna cables.
    • Disconnect the electrical connector.
    • Remove the Torx bolt.
    • Release the clip.
