Removal And Installation: Removal

  1. Remove the battery ground cable.

    For additional information, Refer to: Specifications

  2. Remove the high mounted stoplamp.

    For additional information, refer to: High Mounted Stoplamp

  3. G11599095

    Remove the liftgate trim panel.

    • Release the 4 clips.

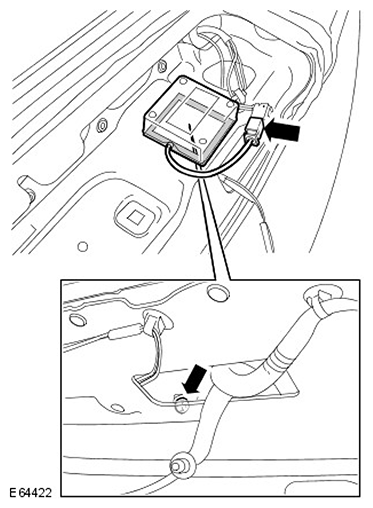

  4. G11599290

    Remove the navigation system antenna.

    • Remove the screw.
    • Release and disconnect the electrical connector.
    • Cut through the adhesive retaining pad.
