Component Location

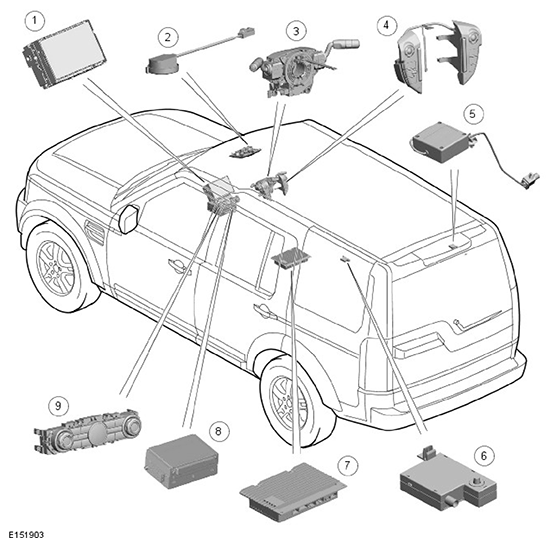

Component Location (ROW)
| ITEM | DESCRIPTION |
|---|---|
| 1 | TS (Touch Screen) |
| 2 | Microphone - voice recognition |
| 3 | Clockspring |
| 4 | Steering wheel switches |
| 5 | GPS (global positioning system) antenna |
| 6 | TMC (Traffic Message Channel) antenna amplifier |
| 7 | Audio Amplifier Module (AAM) |
| 8 | IAM (Integrated Audio Module), incorporating the navigation module |
| 9 | Integrated Control Panel (ICP), incorporating the navigation switch |

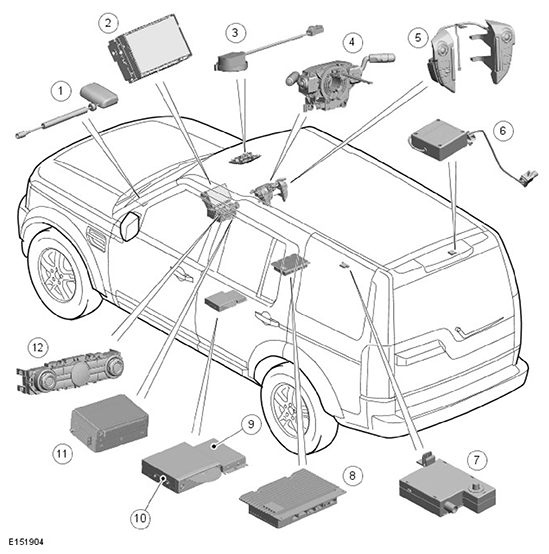

Component Location (Japan)
| ITEM | DESCRIPTION |
|---|---|
| 1 | VICS (Vehicle Information and Communication System) beacon antenna |
| 2 | TS (Touch Screen) |
| 3 | Microphone - voice recognition |
| 4 | Clockspring |
| 5 | Steering wheel switches |
| 6 | GPS antenna |
| 7 | VICS antenna amplifier |
| 8 | Audio Amplifier Module (AAM) |
| 9 | Navigation video interface module |
| 10 | Navigation computer module |
| 11 | IAM (Integrated Audio Module) |
| 12 | Integrated Control Panel (ICP), incorporating the navigation switch |

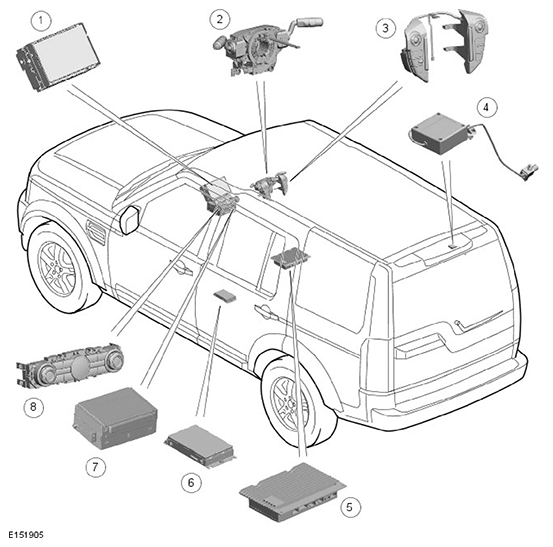

Component Location (Asia)
| ITEM | DESCRIPTION |
|---|---|
| 1 | TS (Touch Screen) |
| 2 | Clockspring |
| 3 | Steering wheel switches |
| 4 | GPS antenna |
| 5 | Audio Amplifier Module (AAM) |
| 6 | Navigation computer module |
| 7 | IAM (Integrated Audio Module) |
| 8 | Integrated Control Panel (ICP), incorporating the navigation switch |
