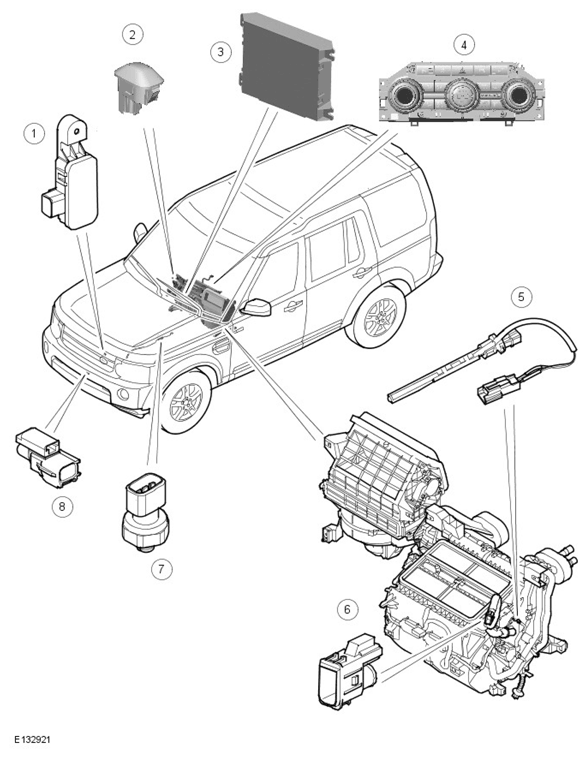

Component Locations: Notes
NOTE:
RHD (right-hand drive) installation shown; LHD (left-hand drive) installation similar
| ITEM | DESCRIPTION |
|---|---|
| 1 | Pollution sensor (Japan only) |
| 2 | Sunlight sensor |
| 3 | ATC (automatic temperature control) module |
| 4 | Center instrument panel switch pack |
| 5 | Evaporator temperature sensor |
| 6 | In-vehicle temperature sensor (all except Japan), or in-vehicle temperature and humidity sensor (Japan only) |
| 7 | Refrigerant pressure sensor |
| 8 | Ambient air temperature sensor |
