General Procedures: Check

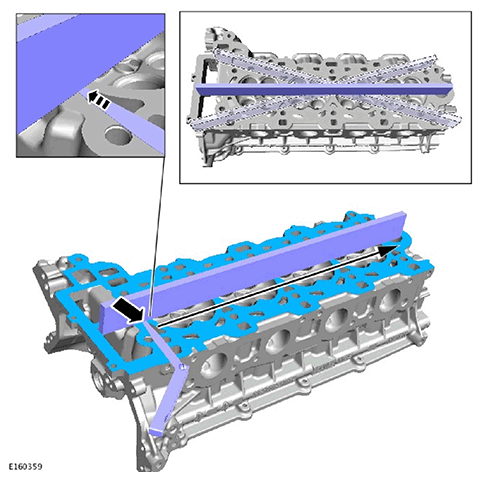

  1. G11587187

    Using a suitable metallic straight edge and feeler gauge, measure the cylinder head face in the areas illustrated. Note the maximum value  .

  2. CAUTION: Machine the minimum  thickness of material from the cylinder head to meet specification. If a selection of cylinder head gaskets are available, increase the thickness of the cylinder head gasket by one size.
    NOTE:
    • Prior to having the cylinder head machined, prior approval is required by Jaguar or Land Rover engineering.
    • If the cylinder head requires machining, this must be carried out by a local engineering company.

    If the cylinder head exceeds the maximum value (0.2mm), the cylinder head must be machined.
