General Procedures

  1. Check the operation of the transmission selector lever.
  2. Remove the gear selector knob.

    Refer to: Selector Lever Knob .

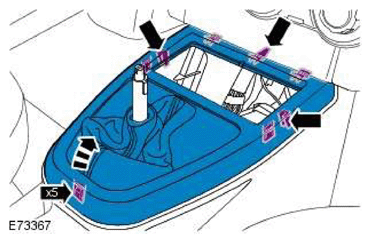

  3. G11590328
  4. CAUTION: Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
    G11590329

    Release the selector cable adjuster.

  5. CAUTION: Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
    G11590330

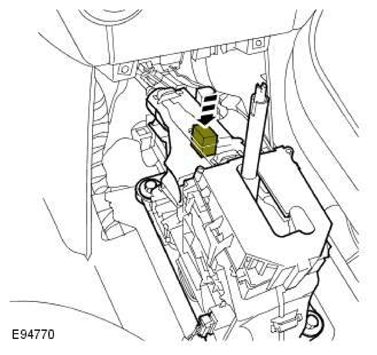

  6. G11590331

    Lock the selector cable adjuster.

  7. Secure the gear selector cover.
  8. Install the gear selector knob.

Refer to: Selector Lever Knob .
