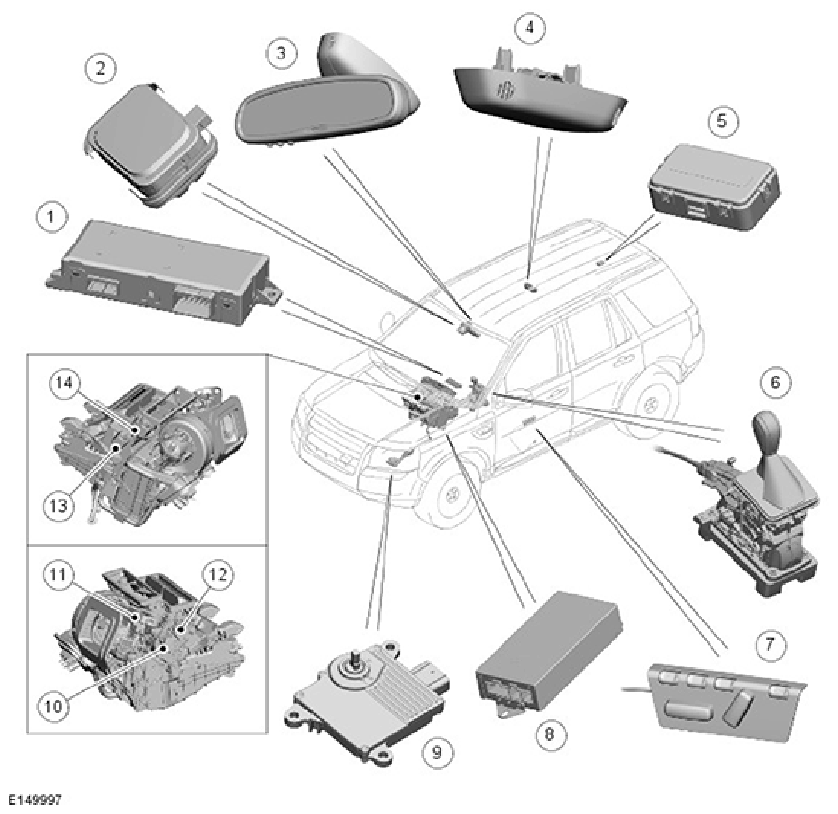

Component Location - LIN BUS (Sheet 2 Of 2)
| ITEM | DESCRIPTION |
|---|---|
| 1 | Driver Seat Module (DSM) |
| 2 | Rain/light sensor |
| 3 | Humidity sensor |
| 4 | Volumetric sensor |
| 5 | Radio Frequency (RF) receiver |
| 6 | Transmission Control Switch (TCS) |
| 7 | Driver seat memory switchpack |
| 8 | Voltage Quality Module (VQM) |
| 9 | Transmission Control Module (TCM) (Automatic transmission only) |
| 10 | Demist distribution motor |
| 11 | Center distribution motor |
| 12 | Face/feet distribution motor |
| 13 | Left distribution motor |
| 14 | Right distribution motor |
