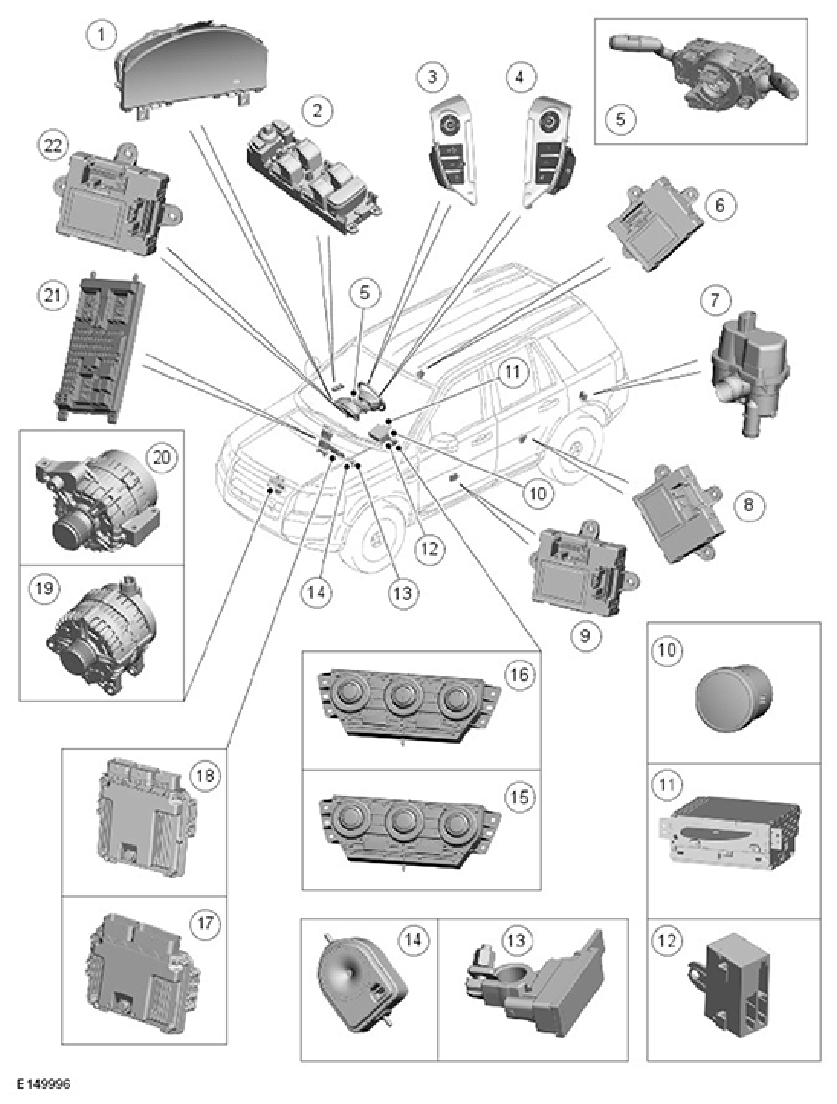

| 1 |
Instrument Cluster (IC) |
| 2 |
Driver door switchpack |
| 3 |
Left steering wheel switchpack |
| 4 |
Right steering wheel switchpack |
| 5 |
Clockspring |
| 6 |
Rear right door module |
| 7 |
Diagnostic Module Tank Leakage (DMTL) pump |
| 8 |
Rear left door module |
| 9 |
Passenger Door Module (PDM) |
| 10 |
Clock |
| 11 |
Integrated Audio Module (IAM) |
| 12 |
Seat climate control module |
| 13 |
Battery Monitoring System (BMS) module |
| 14 |
Battery Back-Up Sounder (BBUS) |
| 15 |
Automatic Temperature Control (ATC) module (Hi-line) |
| 16 |
ATC module (Lo-line) |
| 17 |
Engine Control Module (ECM) - GTDi 2.0L PETROL |
| 18 |
ECM - TD4 2.2L DIESEL |
| 19 |
Generator - TD4 2.2L DIESEL |
| 20 |
Generator - GTDi 2.0L PETROL |
| 21 |
Central Junction Box (CJB) |
| 22 |
Driver Door Module (DDM) |
