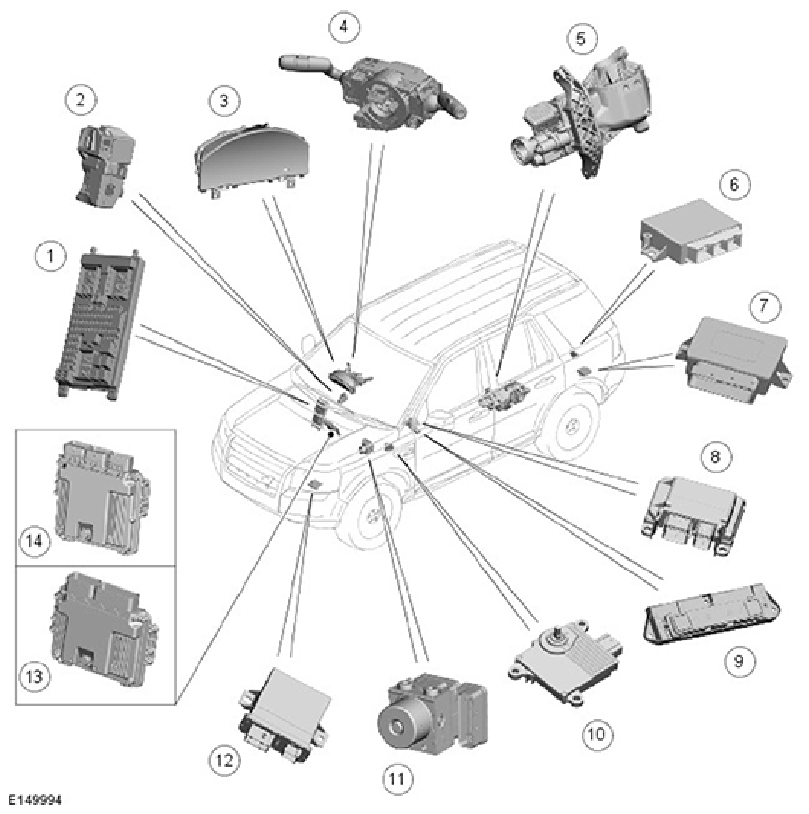

Component Location - High Speed CAN BUS
| ITEM | DESCRIPTION |
|---|---|
| 1 | CJB |
| 2 | Electric Steering Column Lock (ESCL) |
| 3 | IC |
| 4 | Clockspring |
| 5 | Rear Differential Control Module (RDCM) |
| 6 | Park Distance Control Module (PDCM) |
| 7 | Electric Park Brake Control Module (EPBCM) |
| 8 | Restraints Control Module (RCM) |
| 9 | Terrain Response (TR) switchpack (AWD only) |
| 10 | TCM (Automatic transmission only) |
| 11 | Anti-Lock Brake System (ABS) control module |
| 12 | Headlamp Leveling Control Module (HLCM) |
| 13 | ECM - GTDi 2.0L PETROL |
| 14 | ECM - TD4 2.2L DIESEL |
