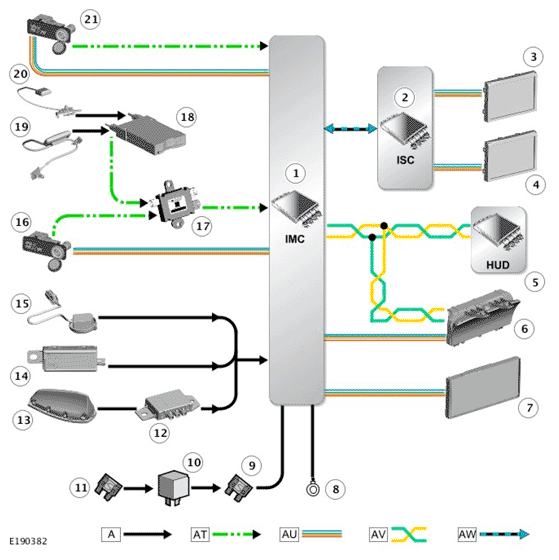

Control Diagram
A = HARDWIRED; AT = USB; AV = HIGH SPEED CAN COMFORT SYSTEMS BUS; AU = APIX2; AW = ETHERNET
| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master Controller (IMC) |
| 2 | Infotainment Slave Controller (ISC) (if fitted) |
| 3 | Left Rear Seat Entertainment (RSE) screen (if fitted) |
| 4 | Right RSE screen (if fitted) |
| 5 | Head Up Display (HUD) control module |
| 6 | Instrument Cluster (IC) |
| 7 | Touch Screen (TS) |
| 8 | Ground |
| 9 | Fuse - located in RJB |
| 10 | Quiescent Current Control Module (QCCM) Relay - located in Rear Junction Box (RJB) |
| 11 | Fuse - located in Battery Junction Box (BJB) |
| 12 | Global Positioning System (GPS) signal splitter |
| 13 | Roof pod - GPS antenna |
| 14 | FM/TMC/DAB-III (VICS Japan) antenna amplifier |
| 15 | Microphone |
| 16 | Portable media interface panel (Japan only) |
| 17 | USB 2.0 hub |
| 18 | Electronic Toll Collection Module (Japan only) |
| 19 | Electronic Toll Collection Module antenna (Japan only) |
| 20 | Vehicle Information and Communication System (VICS) beacon antenna (Japan only) |
| 21 | Portable media interface panel (Rest of World (ROW)) |
