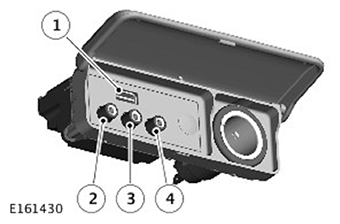

Audio Visual Input/Output (AVIO) Panel
| ITEM | DESCRIPTION |
|---|---|
| 1 | Universal Serial Bus (USB) |
| 2 | Yellow socket - Composite video input |
| 3 | White socket - Left audio input |
| 4 | Red socket - Right audio input |
The AVIO panel is located at the rear of the floor console.
The panel provides for the connection of auxiliary audio and video inputs from an external source, such as a games console, via three AV sockets on the panel.
The sockets are connected to the RSE control module and allow the auxiliary input video to be played on the RSE screens and the audio to be played on the vehicle speakers or on the wireless headphones. The auxiliary input video cannot be displayed on the TS.
The single USB plug allows for the attachment of an USB input, such as iPod®/iPhone®, an MP3 player or a USB memory stick. This plug is connected directly to the RSE control module and allows audio to be selectable on the RSE screens and played on the wireless headphones or through the vehicle speakers. It will also allow standard definition Div X video files to be played from a USB memory stick.
The AVIO panel is connected to the RSE control module using a single 20 pin harness connector.
