Removal And Installation: Installation

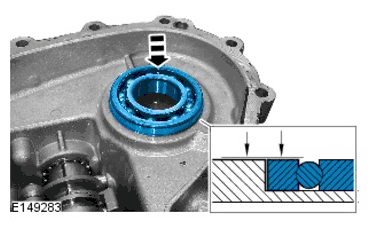

  1. CAUTION: Make sure that the front driveshaft gear bearing is fully seated before installing the new chain and gear.
    G11600217

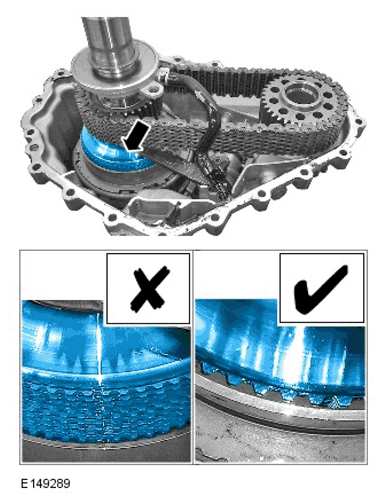

  2. CAUTION: Make sure that the clutch assembly is correctly located as illustrated.
    G11600175
  3. CAUTION: Make sure that the clutch assembly is correctly located as illustrated.
    G11600176

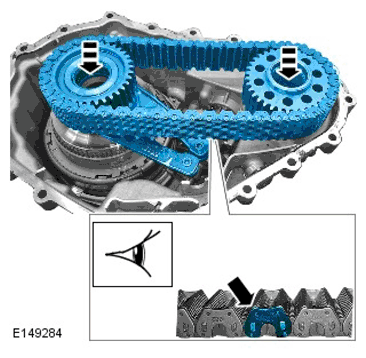

  4. CAUTION: Make sure that the chain is installed with the chain link facing down.
    G11600244

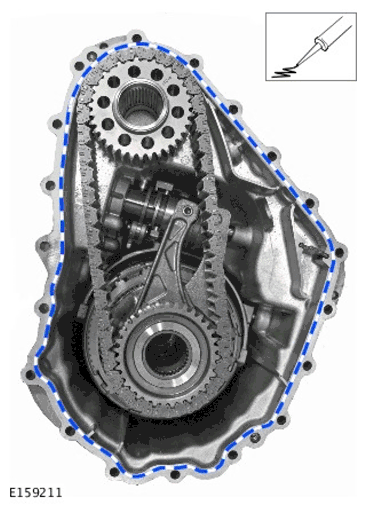

  5. G11600177

    Apply a 2mm bead of sealant to one surface of the transfer case mating faces, as shown.

  6. CAUTION: Make sure that the input shaft spacer is correctly located.
    G11600178

    Install the front half of the case.

  7. CAUTION: Care must be taken when turning the transfer case over. The transfer case halves must not be allowed to separate.

    With assistance, release the transfer case and secure with it's transmission mating face down on a flat surface.

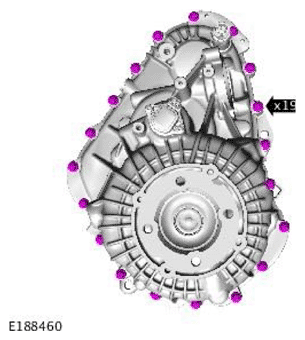

  8. CAUTION: Only tighten the bolts finger-tight at this stage.
    G11707533

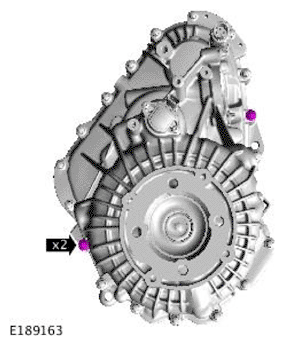

  9. G11707561

    Torque Specification: 10 Nm

  10. G11707533

    Torque Specification: 35 Nm

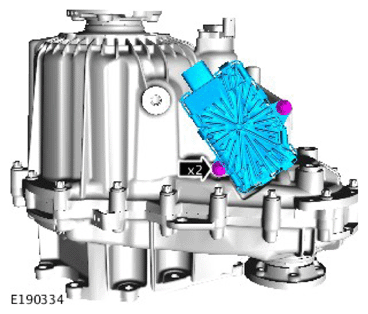

  11. G11768620

    Torque Specification: 35 Nm

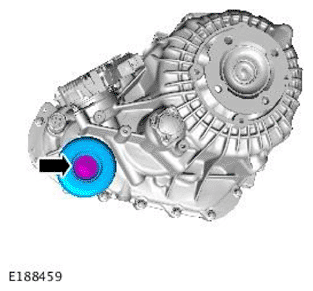

  12. G11707531

    Torque Specification: 75 Nm

  13. Refer to: TRANSFER CASE - V6 S/C 3.0L PETROL/V8 N/A 5.0L PETROL/V8 S/C 5.0L PETROL

  14. Refer to: TRANSFER CASE DRAINING AND FILLING
