Valve Block-Rear Connector End View (C4CL02)

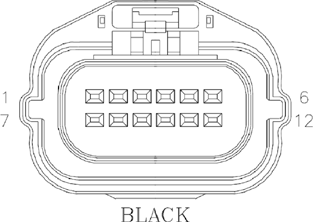

Fig 1: Valve Block-Rear Connector End View (C4CL02)

G11076211

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
