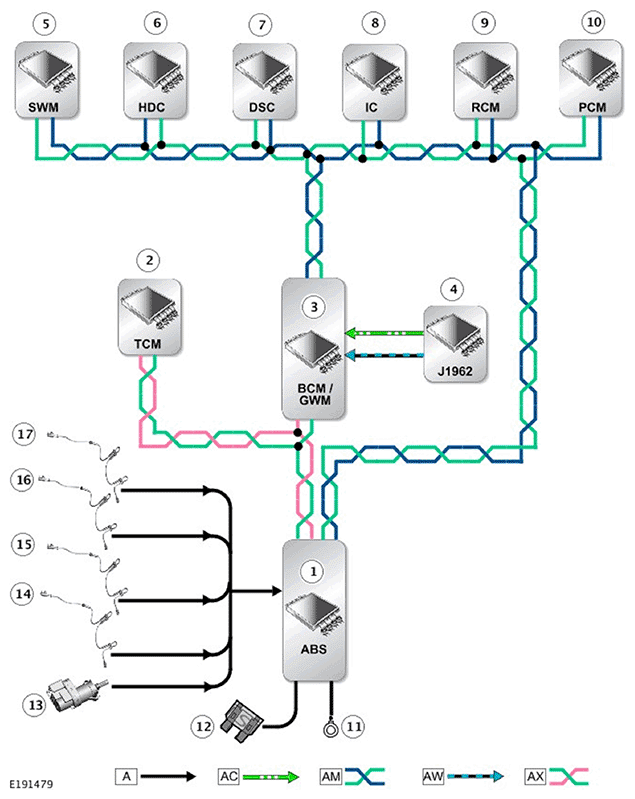

Control Diagram
A = HARDWIRED; AC = DIAGNOSTIC; AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS BUS; AW = ETHERNET; AX = FLEXRAY
| ITEM | DESCRIPTION |
|---|---|
| 1 | Anti-lock brake system (ABS) control module |
| 2 | Transmission Control Module (TCM) |
| 3 | Powertrain Control Module (PCM) |
| 4 | Brake switch |
| 5 | Body Control Module/Gateway Module (BCM/GWM) |
| 6 | Diagnostic connector (J1962) |
| 7 | Steering Angle Sensor Module (SASM) |
| 8 | Steering Wheel Module (SWM) |
| 9 | Hill Descent Control (HDC) Switch |
| 10 | Dynamic Stability Control (DSC) switch |
| 11 | All Terrain Control Module (ATCM) |
| 12 | Instrument Cluster (IC) |
| 13 | Restraints Control Module (RCM) |
| 14 | Adaptive Speed Control Module (ASCM) |
| 15 | Ground |
| 16 | Supply |
| 17 | Wheel speed sensor |
| 18 | Wheel speed sensor |
| 19 | Wheel speed sensor |
