Digital Disc Player

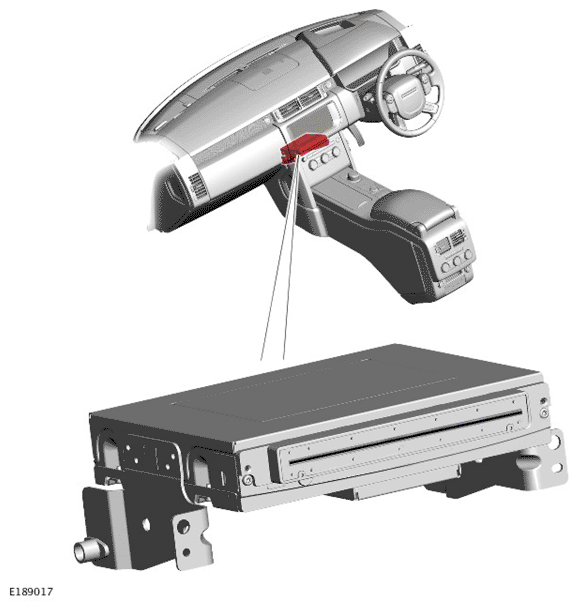

The digital disc player in located in a central position in the instrument panel, above the Integrated Control Panel (ICP). A Compact Disc (CD)/Digital Versatile Disc (DVD) eject switch is integrated into the ICP.

The digital disc player has the capability to play a number of file formats for both audio and video. The digital disc player can play back standard definition CD/DVD video discs only.

On vehicles with a USB 2.0 hub, the digital disc player is connected to the USB 2.0 Hub. Data is transmitted from the USB 2.0 hub directly to the IMC.

On vehicles without a USB 2.0 hub, the digital disc player is connected via a USB 2.0 connection directly to the IMC.

The IMC logs Diagnostic Trouble Codes (DTCs) for faults generated by the digital disc player. When replaced, the digital disc player is calibrated, using approved diagnostic equipment.
