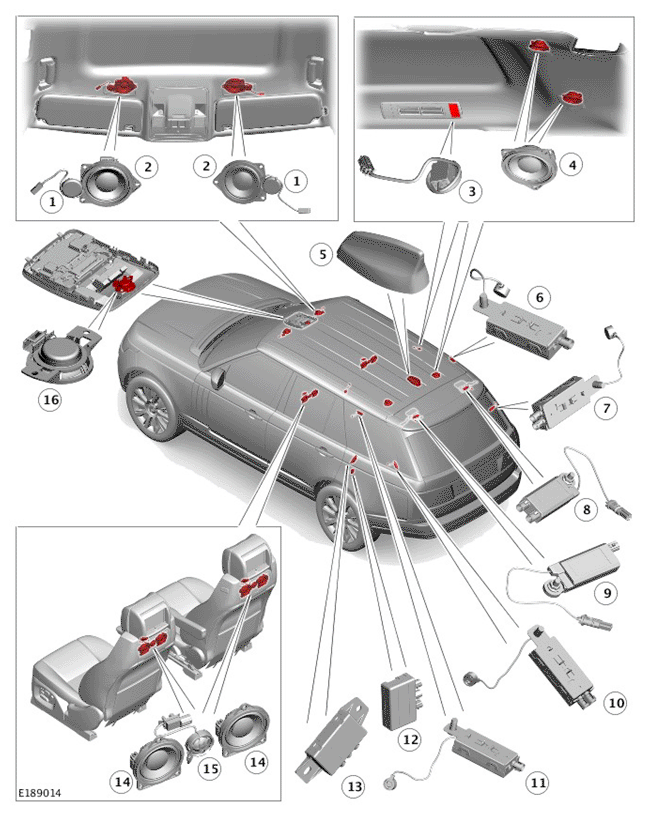

| 1 |
Front Dynamic Equalization microphone (2 off) |
| 2 |
Front headliner mid-range speaker (2 off) |
| 3 |
Rear Dynamic Equalization microphone (2 off) |
| 4 |
Rear headliner mid-range speaker (2 off) |
| 5 |
Roof pod (Global Navigation Satellite System (GNSS)/Digital Audio Broadcast (DAB)/Global System for Mobile communications (GSM)/Satellite Digital Audio Radio Service (SDARS) (NAS only)/external WiFi antenna) |
| 6 |
Television (TV) antenna amplifier |
| 7 |
TV antenna amplifier |
| 8 |
Frequency Modulation 2 (FM2) DAB antenna amplifier |
| 9 |
Amplitude Modulation (AM) FM antenna amplifier |
| 10 |
TV antenna amplifier |
| 11 |
TV antenna amplifier |
| 12 |
DAB antenna combiner |
| 13 |
Global Positioning System (GPS) signal splitter |
| 14 |
Front seat mid-range speaker (4 off) |
| 15 |
Front seat tweeter speaker (2 off) |
| 16 |
Telematics speaker (All markets except Russia) |
