Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: LUGGAGE COMPARTMENT UPPER TRIM PANEL .

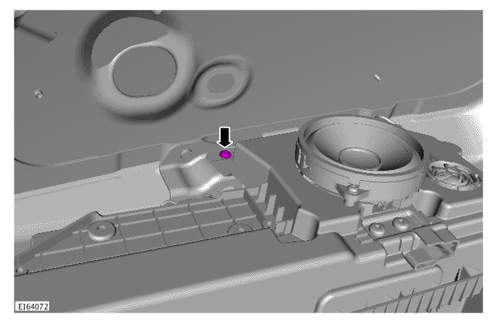

  2. G11702895

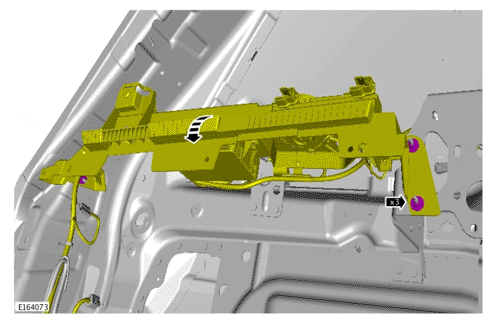

  3. G11702896

    Torque Specification: 6 Nm

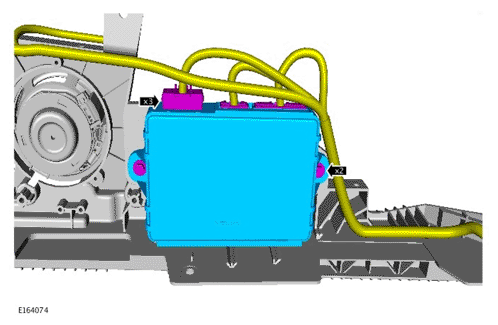

  4. G11702897

    Torque Specification: 9 Nm
