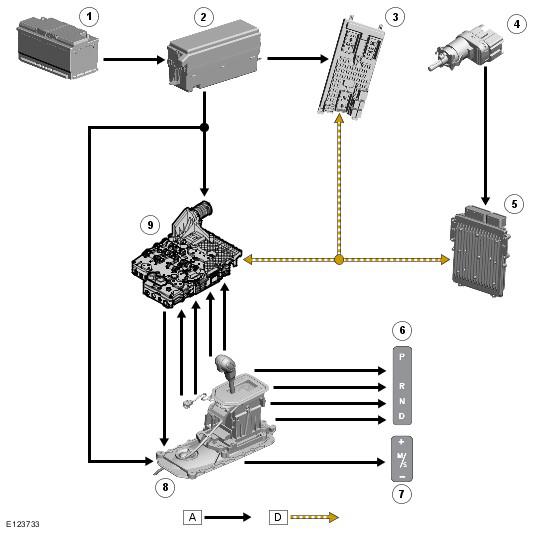

Control Diagram
NOTE:
A = Hardwired; D = High speed controller area network (CAN) bus.
| Item Number | Description |
|---|---|
| 1 | Battery |
| 2 | EJB (engine junction box) (50 A megafuse) |
| 3 | CJB (central junction box) (ignition relay) |
| 4 | Stoplamp switch |
| 5 | ECM (engine control module) |
| 6 | Selector lever position display |
| 7 | M/S display |
| 8 | Selector lever assembly |
| 9 | TCM/Mechatronic valve block |
