Passive Entry System: Notes
The passive entry system is controlled by the KVM and low frequency antennas in each door handle and one in the rear bumper; antennas are also strategically situated within the vehicle. When inside the vehicle, the antennas ensure the Smart Key is always within the active transmission zone of the antennas no matter where the Smart Key is placed inside the vehicle. For this reason the orientation and positioning of the antennas is critical to the correct functioning of the system.
The vehicle can be unlocked without the use of a key-blade or buttons on the Smart Key.
When an external door handle is grasped and the Smart Key is within one meter (3.3ft.) of the handle; the Smart Key receives a low-frequency signal transmitted from the handle.
The Smart Key responds with a radio frequency transmission of its authorization code. The radio frequency signal is received by the Radio-Frequency receiver and passed to the keyless vehicle module which checks and approves the code as valid.
The KVM then drives the fast latch directly to allow the door to be opened. The keyless vehicle module also transmits an unlock request to the central junction box (CJB). The central junction box (CJB) then passes an unlock request to the door modules.

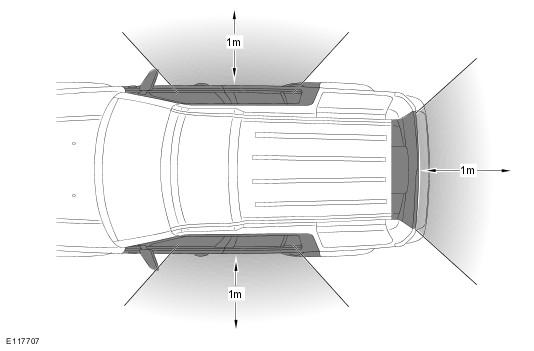

Door-handle antenna operating area
Locking of the vehicle is performed by pressing one of the buttons located on each exterior door handle, with the Smart Key within a one meter range of the vehicle. When the door handle button is pressed, the KVM transmits a low-frequency signal via the handle antenna to the Smart Key. The Smart Key transmits a radio frequency signal which is verified by the KVM and allows the doors to be locked or double locked and the alarm system to be armed.
To double lock the vehicle, the button on the exterior door handle must be pressed twice within three seconds, with the Smart Key within one meter range of the vehicle. If a door, hood or the tailgate door is ajar when an attempt to lock the vehicle is made, an error tone is emitted and no locking action will occur. Refer to Anti-Theft - Active .
When unlocking the vehicle using passive entry with single stage unlocking selected and a valid Smart key present, grasping the door handle will centrally unlock the vehicle. When the vehicle is configured for two stage unlocking and the drivers door handle is grasped with a valid Smart Key present only the drivers door will unlock, however if a passenger door handle is grasped with a valid Smart Key present the vehicle will centrally unlock.
To globally close the vehicle pressing and holding the button on the door handle locks the vehicle, arms the alarm and closes all open windows, not the sunroof. The windows will stop closing when the button is released.
