Differential Case: Installation

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean all the mating faces and reusable parts thoroughly and check for damage.
  2. NOTE: This step is only required if previously removed.

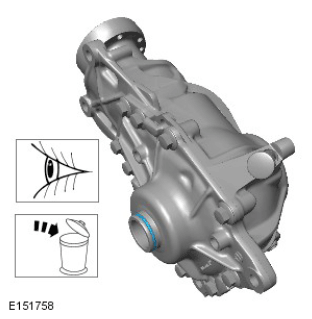

    G11420805

    Install a new O-ring seal.

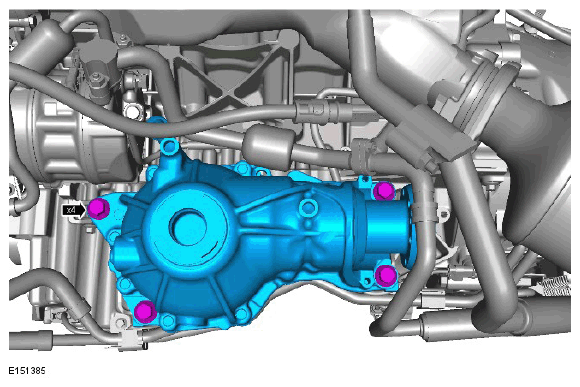

  3. G11420806

    Torque Specification: 115 Nm

  4. Refer to: Front Subframe - AWD .
  5. Refer to: Front Driveshaft - AWD Removal And Installation .
  6. Refer to: DIFFERENTIAL DRAINING AND FILLING .
  7. Refer to: Air Deflector .
