Removal And Installation: Removal

CAUTION: After switching off the ignition, wait for 2 minutes before disconnecting the battery. Failure to wait for 2 minutes will result in the engine control module flagging fault codes.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: Specifications .

  2. Refer to: Plenum Chamber .

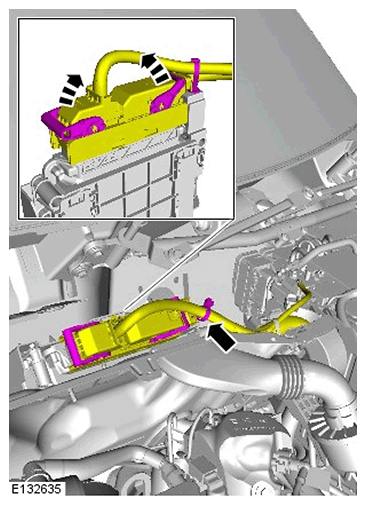

  3. G11588771

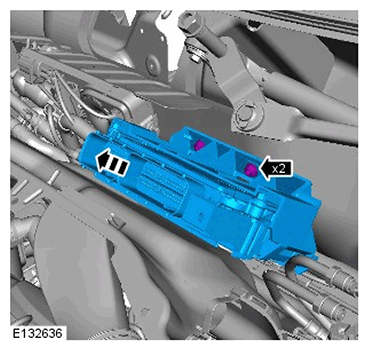

  4. G11588772

    Torque Specification: 7 Nm

  5. NOTE: Do not disassemble further if the component is removed for access only.

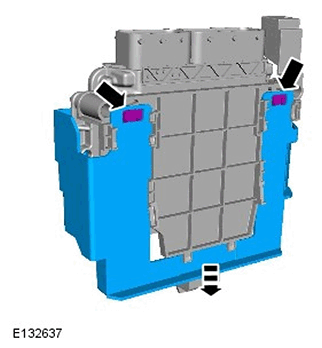

    G11588773

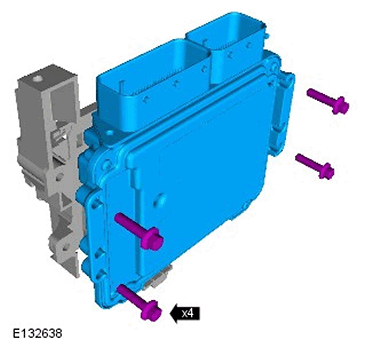

  6. G11588774

    Torque Specification: 7 Nm
