Removal And Installation: Removal

  1. Remove the floor console.

    Refer to: Floor Console .

    • Position the transmission selector lever into PARK.
    • Depress and hold the selector cable ball joint release button, using a lever carefully disconnect the cable.
    • Release the cable.

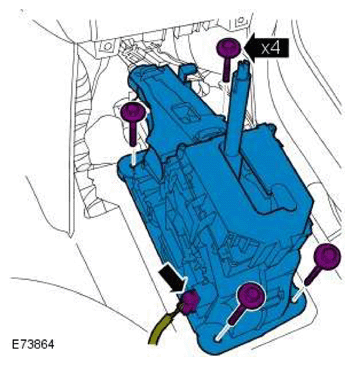

  3. G11590334
    • Torque Specification: 10 Nm
