Terrain Response Rotary Control And Module

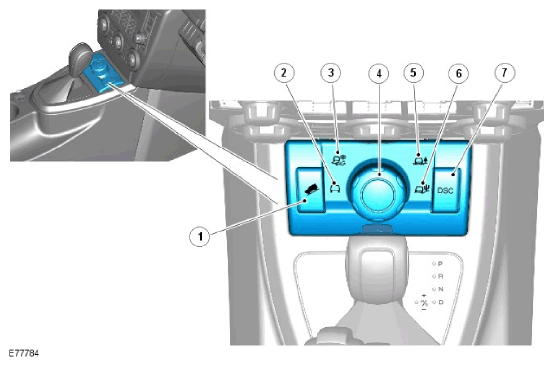

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hill Descent Control (HDC) switch |
| 2 | Special programs off |
| 3 | Grass/Gravel/Snow program |
| 4 | Rotary control |
| 5 | Mud/ruts program |
| 6 | Sand program |
| 7 | Dynamic Stability Control (DSC) switch |
Each program is denoted by a symbol which represents the terrain encountered. The rotary control will only select the last program in its direction of rotation. Further rotation of the control in either direction, once the last program has been selected, will have no effect, for example; once 'Sand' has been selected, further rotation in a clockwise direction will retain 'Sand'.
The control module and rotary control is connected via a harness connector which also contains the wiring for the HDC and DSC switches and the illumination circuits. The control module and rotary control uses 4 of these wires for 12V battery supply (ignition - only when the ignition is on) a ground and high speed CAN bus (positive and negative).
