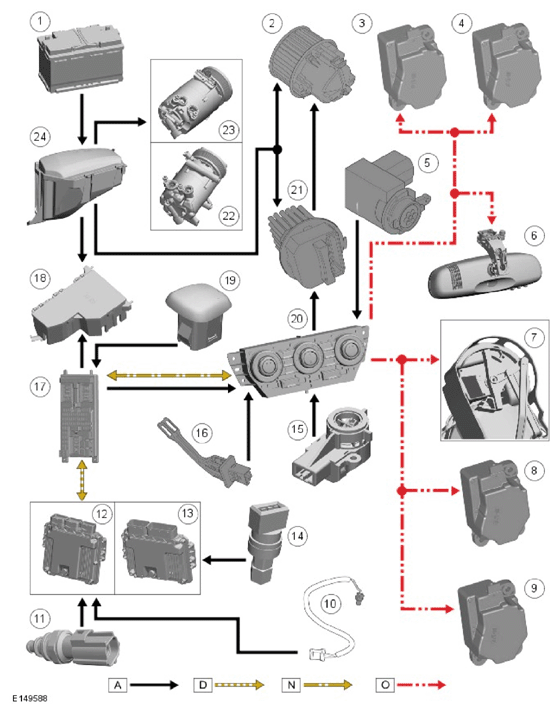

Control Diagram
NOTE:
A
= Hardwired; D
= High Speed CAN bus; N
= Medium Speed CAN bus; O
= LIN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Blower |
| 3 | Right temperature blend motor |
| 4 | Demist distribution motor |
| 5 | Pollution sensor |
| 6 | Humidity sensor |
| 7 | Recirculation motor |
| 8 | Left temperature blend motor |
| 9 | Center distribution motor |
| 10 | AAT sensor |
| 11 | ECT (engine coolant temperature) sensor |
| 12 | Engine Control Module (ECM) - GTDi 2.0L PETROL |
| 13 | ECM - TD4 2.2L DIESEL |
| 14 | Refrigerant pressure sensor |
| 15 | In-vehicle temperature sensor |
| 16 | Evaporator temperature sensor |
| 17 | Central Junction Box (CJB) |
| 18 | Rear Junction Box (RJB) |
| 19 | Sunload sensor |
| 20 | ATC (automatic temperature control) module |
| 21 | Blower control module |
| 22 | Air Conditioning (A/C) compressor clutch (TD4 2.2L DIESEL) |
| 23 | A/C compressor clutch (GTDi 2.0L PETROL) |
| 24 | Battery Junction Box (BJB) |
